Description

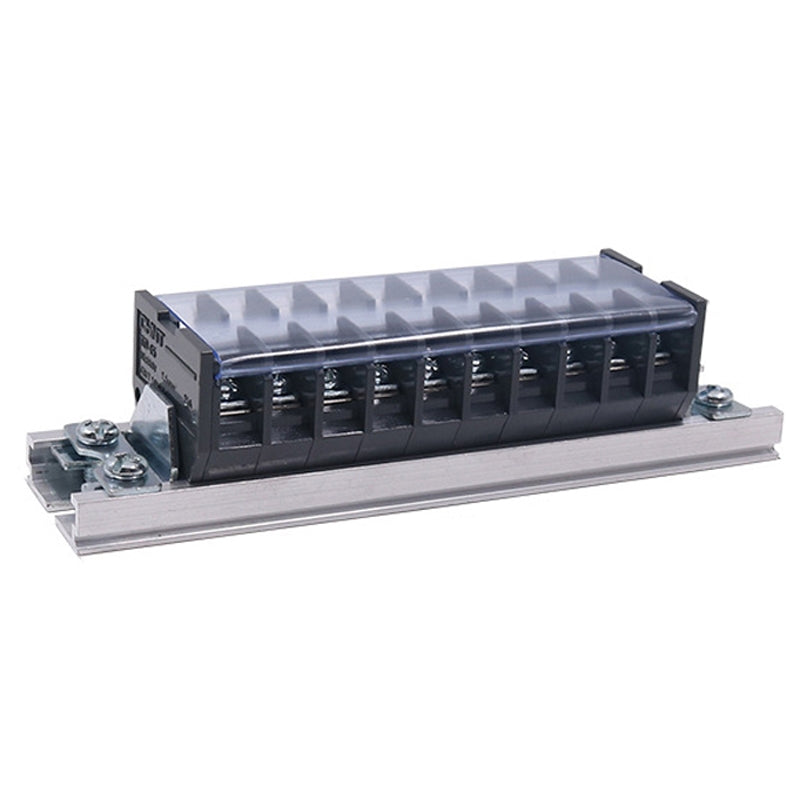

1. TD series terminal block, the shell is not fragile, screws do not slip teeth, thickened copper, strong electrical conductivity

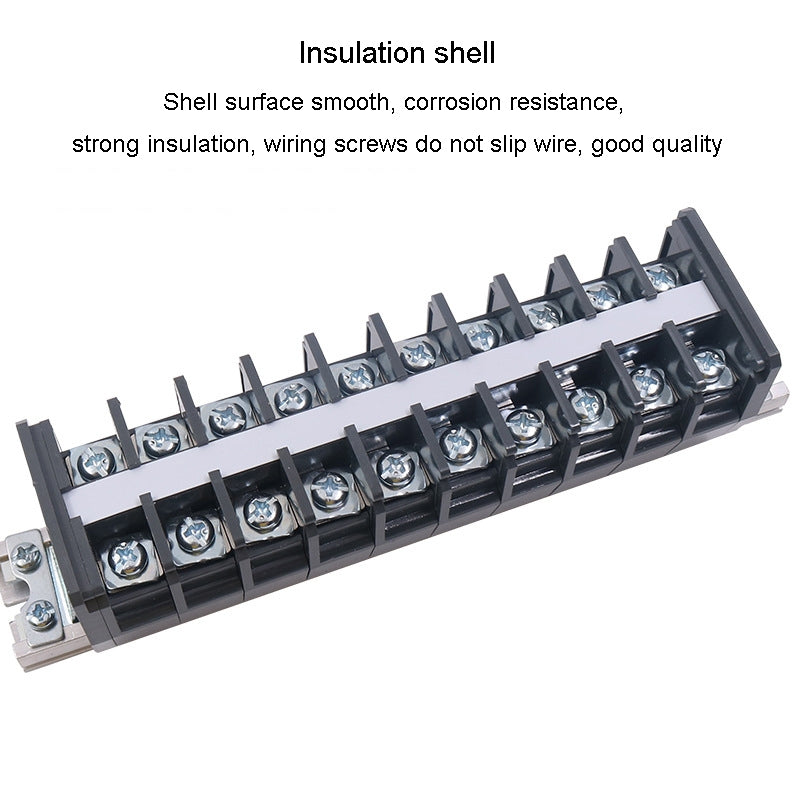

2. Insulated shell, shell surface smooth, corrosion resistance, strong insulation, wiring screws do not slip, good quality

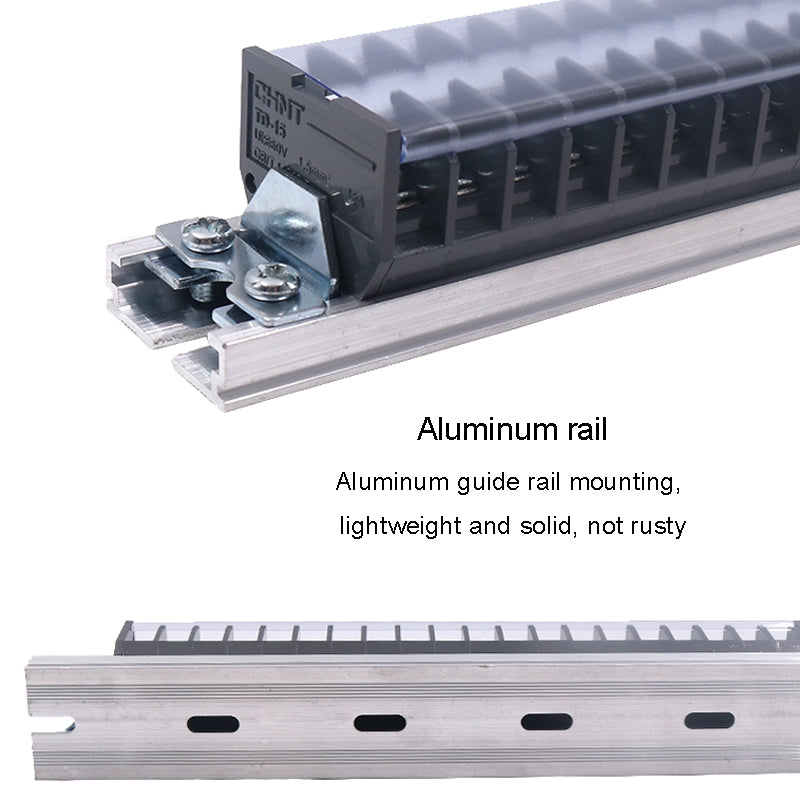

3. Aluminum rail, aluminum rail installation, lightweight and solid, not rusty

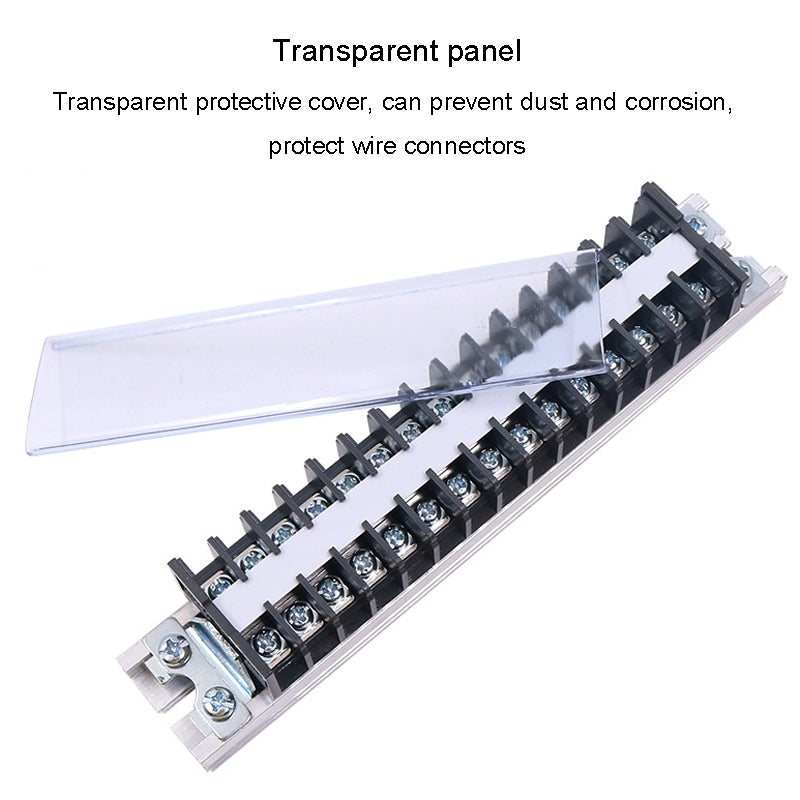

4. Transparent panel, transparent protective cover, can prevent dust and corrosion, protect wire connectors
5. Scope of application: TD series is suitable for AC 50Hz or 60Hz, rated voltage up to 660V, rated current up to 200A power and control circuits, between the wires for connection purposes
6. This series of terminal block adopts screw crimp connection, the end of the wire must be crimped TU-type or TO-type end before connecting with the terminal block, the terminal block has a protective cover, and is installed by C-type mounting rail
7. Conformity standards: GB/T14048.7, IEC60947-7-1

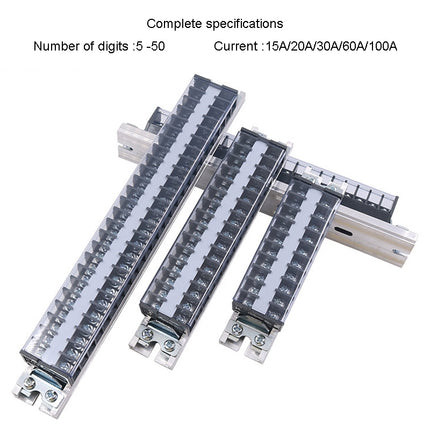

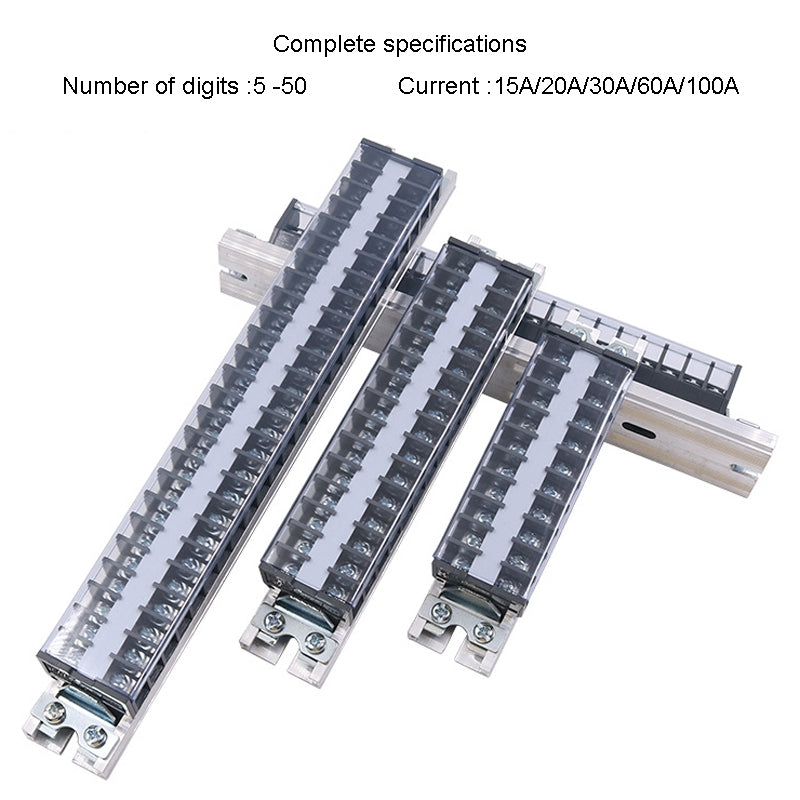

8. Current: TD1510-TD1550: 15A, TD2010-TD2020: 20A, TD3010-TD3020: 30A, TD6005-TD6010: 60A, TD10010: 100A
9. Screws: TD1510-TD1550: M3, TD2010-TD2020: M4, TD3010-TD3020: M5, TD6005-TD6010: M5, TD10010: M5
10. Wire section: TD1510-TD1550: 0.75-1.5mm, TD2010-TD2020: 1-2.5mm, TD3010-TD3020: 1-6mm, TD6005-TD6010: 4-10mm, TD10010: 6-25mm
Specification:
|
Package Weight
|
|
One Package Weight
|
0.10kgs / 0.23lb
|
|
One Package Size
|
15cm * 5cm * 5cm / 5.91inch * 1.97inch * 1.97inch
|
|
Qty per Carton
|
90
|
|
Carton Weight
|
10.00kgs / 22.05lb
|
|
Carton Size
|
47cm * 32cm * 27cm / 18.5inch * 12.6inch * 10.63inch
|
|
