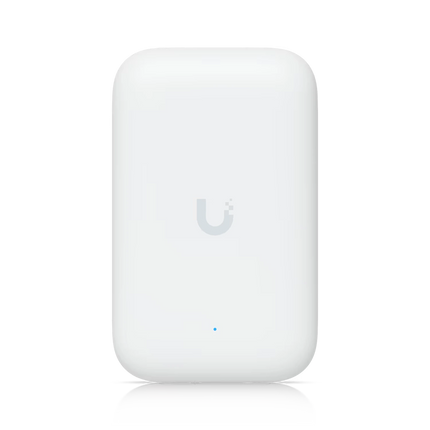

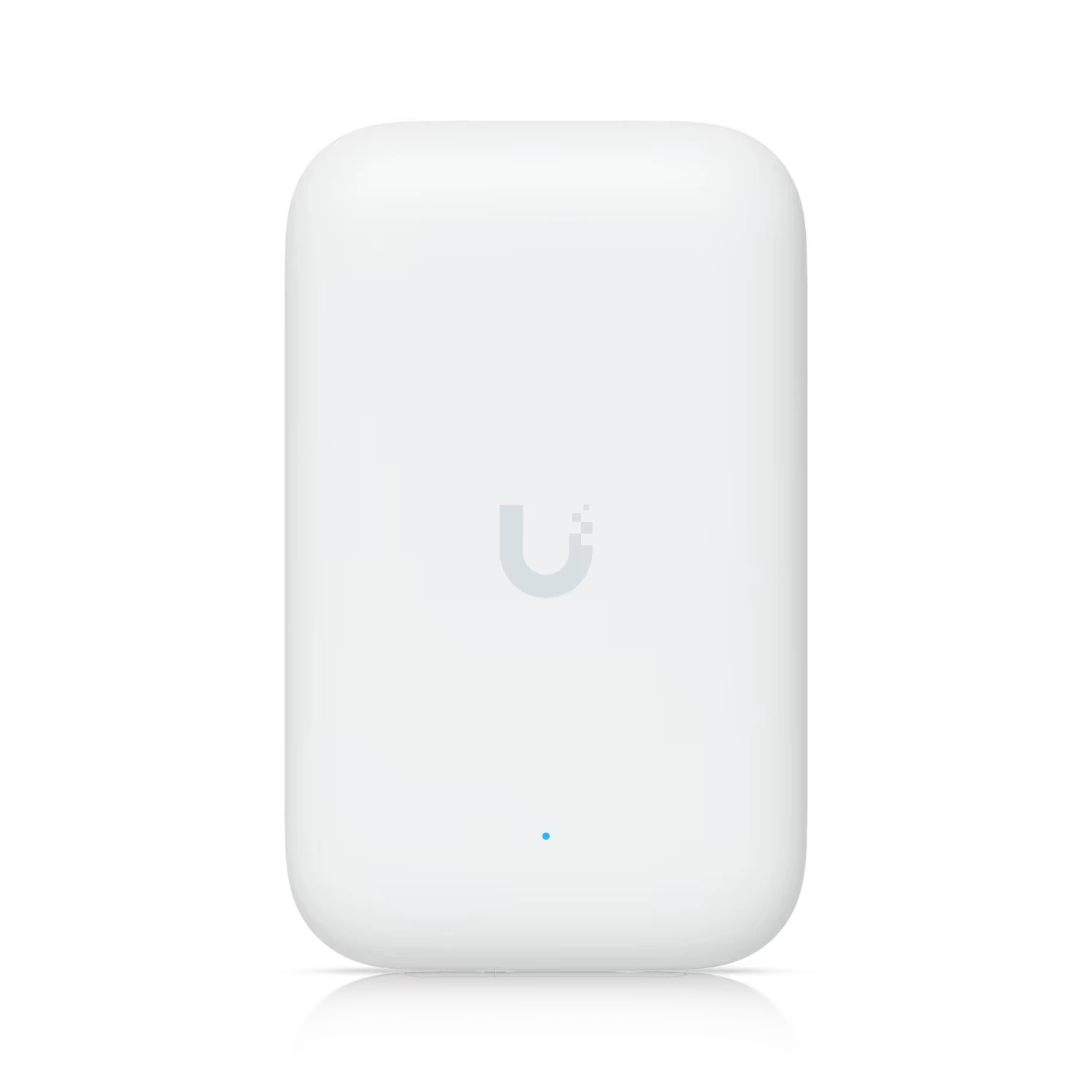

Ubiquiti UniFi UK-Ultra Swiss Army Knife Ultra Outdoor-Rated Wi-Fi 5 Access Point

Description

Dimensions
137 x 84 x 34 mm (5.4 x 3.3 x 1.3")
WiFi Standard
WiFi 5
Spatial Streams
4
Coverage Area
115 m² (1,250 ft²)
Max. Client Count
200+
Uplink
GbE
Mounting

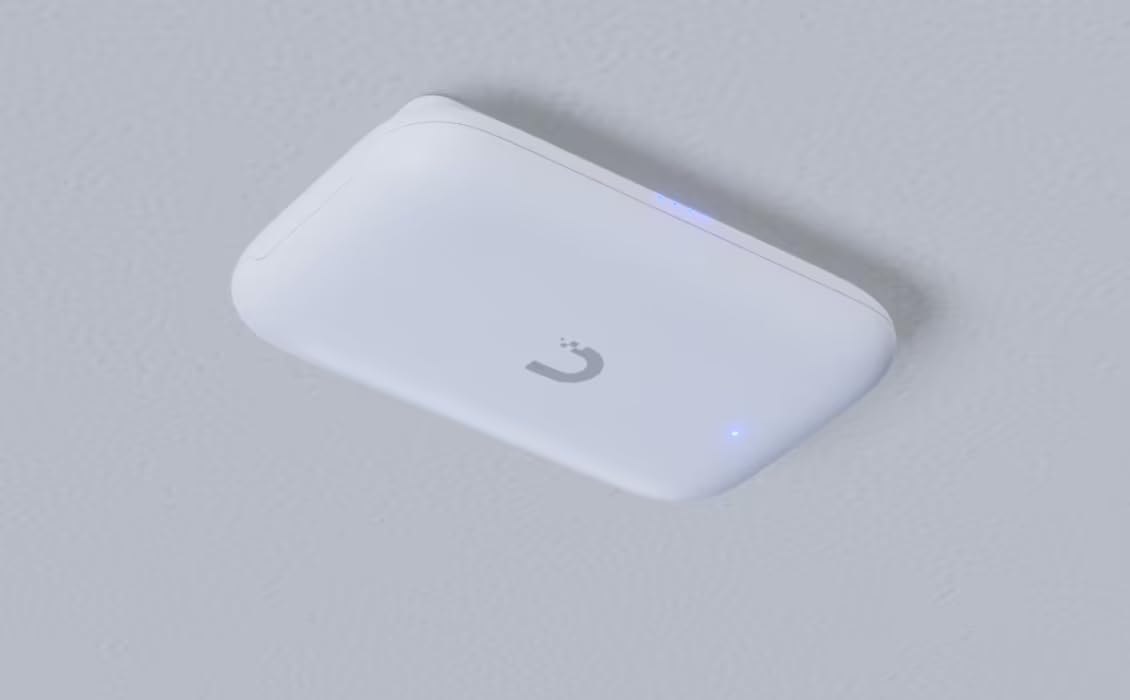

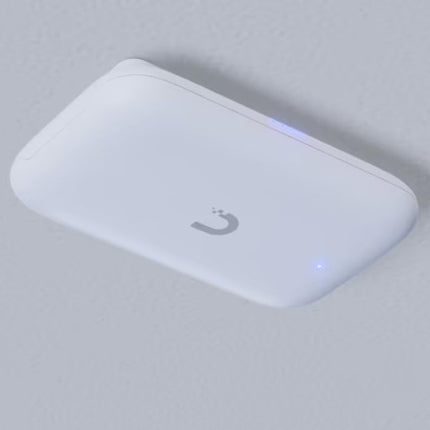

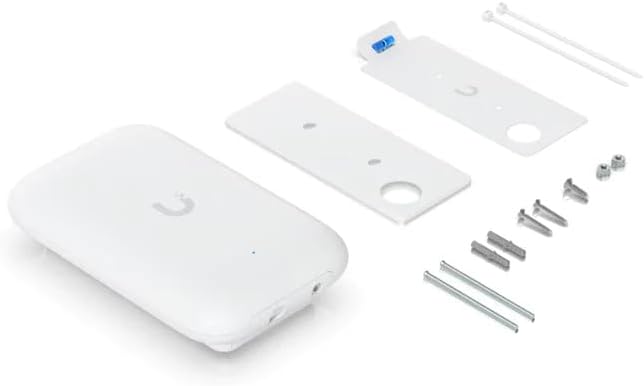

Ceiling, Wall, Pole, Table (With Accessory) (Mounts Included) Desktop Stand (Optional)
Weatherproofing
IPX6
Power Method
PoE

MIMO


5 GHz
2 x 2 (DL MU-MIMO)


2.4 GHz
2 x 2 (DL MU-MIMO)
Max. Data Rate


5 GHz
866.7 Mbps (BW80)


2.4 GHz
300 Mbps (BW40)
Antenna Gain


5 GHz
6.1 dBi


2.4 GHz
4.7 dBi
Max. TX Power


5 GHz
20 dBm


2.4 GHz
20 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates


802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)


802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal


Custom Branding Landing Page
✓


Voucher Authentication
✓


Payment-Based Authentication
✓


External Portal Server Support
✓


Password Authentication
✓


Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Max. Power Consumption
8W
Supported Voltage Range
44—57V DC
Networking Interface
(1) GbE RJ45 port
Weight
173 g (6.1 oz)
Wind Loading
33.2 N at 200 km/h (7.5 lbf at 125 mph)

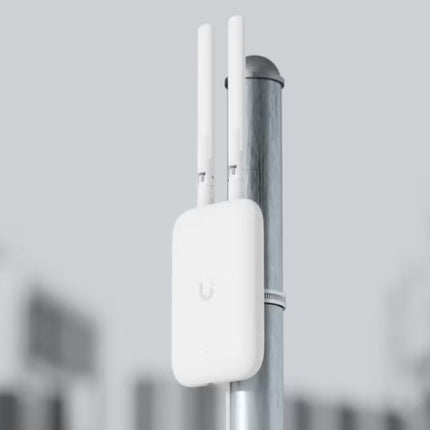

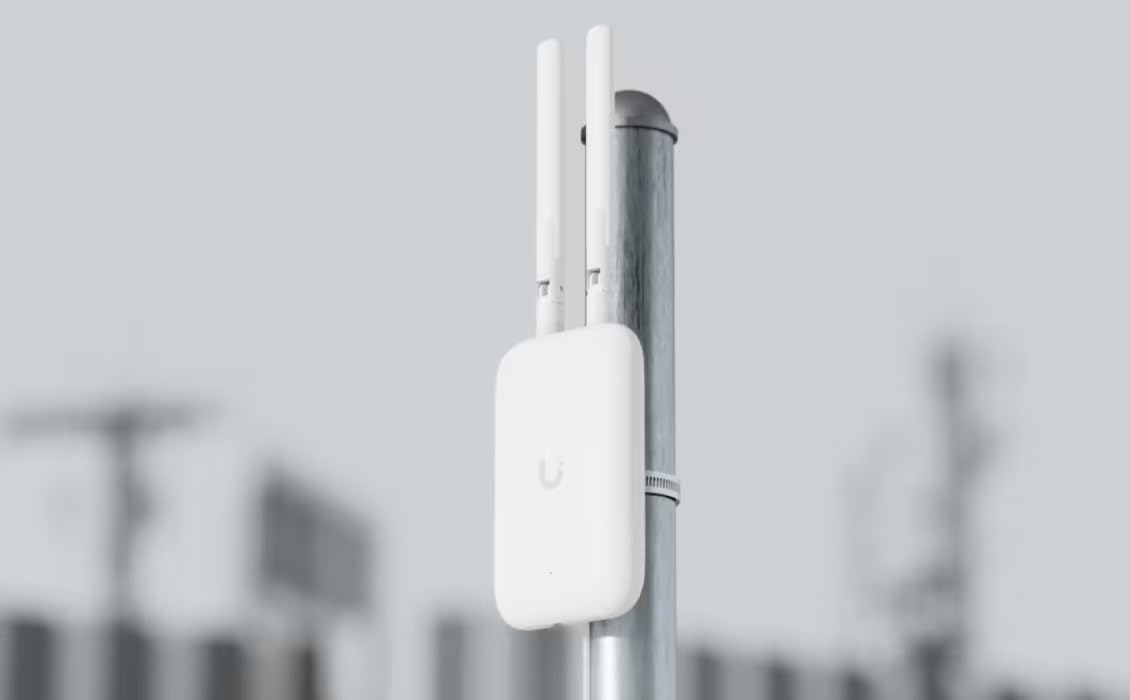

Pole Mount Diameter
1~2" (25–50 mm)
Antennas
(1) Internal antenna (2) RP-SMA connectors
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate
Mount Material
Polycarbonate, SGCC steel, plastic
LEDs


System
(1) Power: White/Blue (4) Mesh Signal: Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 06237-24-08356
Operating Frequency
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz
Ambient Operating Temperature
-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing

Application Requirements


UniFi Network
Version 7.5.187 and later
Product form

Overview Dimensions 137 x 84 x 34 mm (5.4 x 3.3 x 1.3") WiFi Standard WiFi 5 Spatial Streams 4... Read more

Free pickup in our shop(s)

SKU: 19050

10 in stock

$289.00

    • PRICE MATCH & SAVE MONEY
      Iai ae booraoi riki nakon aio? Anganira koauan te boo anne nte chat button i nano ke contact us nte menu i eta ao tina anganiko $5 am credit ni boobwai. Click ikai

    • Guaranteed secure & safe checkout.

    Description

    Dimensions
    137 x 84 x 34 mm (5.4 x 3.3 x 1.3")
    WiFi Standard
    WiFi 5
    Spatial Streams
    4
    Coverage Area
    115 m² (1,250 ft²)
    Max. Client Count
    200+
    Uplink
    GbE
    Mounting
    Ceiling, Wall, Pole, Table (With Accessory) (Mounts Included) Desktop Stand (Optional)
    Weatherproofing
    IPX6
    Power Method
    PoE

    MIMO


    5 GHz
    2 x 2 (DL MU-MIMO)


    2.4 GHz
    2 x 2 (DL MU-MIMO)
    Max. Data Rate


    5 GHz
    866.7 Mbps (BW80)


    2.4 GHz
    300 Mbps (BW40)
    Antenna Gain


    5 GHz
    6.1 dBi


    2.4 GHz
    4.7 dBi
    Max. TX Power


    5 GHz
    20 dBm


    2.4 GHz
    20 dBm
    Max. BSSIDs
    8 per Radio
    Supported Data Rates


    802.11ac (WiFi 5)
    6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)


    802.11n
    6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

    Wireless Meshing
    ✓
    Band Steering
    ✓
    802.11v BSS Transition Management
    ✓
    802.11r Fast Roaming
    ✓
    802.11k Radio Resource Management (RRM)
    ✓
    Advanced Radio Management
    ✓
    Passpoint (Hotspot 2.0)
    ✓
    Captive Hotspot Portal


    Custom Branding Landing Page
    ✓


    Voucher Authentication
    ✓


    Payment-Based Authentication
    ✓


    External Portal Server Support
    ✓


    Password Authentication
    ✓


    Guest Network Isolation
    ✓
    Private Pre-Shared Key (PPSK)
    ✓
    WiFi Speed Limiting
    ✓
    Client Device Isolation
    ✓
    WiFi Schedules
    ✓
    RADIUS over TLS (RadSec)
    ✓
    Dynamic RADIUS-assigned VLAN
    ✓

    Max. Power Consumption
    8W
    Supported Voltage Range
    44—57V DC
    Networking Interface
    (1) GbE RJ45 port
    Weight
    173 g (6.1 oz)
    Wind Loading
    33.2 N at 200 km/h (7.5 lbf at 125 mph)
    Pole Mount Diameter
    1~2" (25–50 mm)
    Antennas
    (1) Internal antenna (2) RP-SMA connectors
    Management
    Ethernet
    Enclosure Material
    UV-stabilized polycarbonate
    Mount Material
    Polycarbonate, SGCC steel, plastic
    LEDs


    System
    (1) Power: White/Blue (4) Mesh Signal: Blue
    Channel Bandwidth
    HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz)
    NDAA Compliant
    ✓
    Certifications
    CE, FCC, IC, Anatel: 06237-24-08356
    Operating Frequency
    US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz
    Ambient Operating Temperature
    -40 to 60° C (-40 to 140° F)
    Ambient Operating Humidity
    5 to 95% noncondensing

    Application Requirements


    UniFi Network
    Version 7.5.187 and later
